Refer to the applicable section below for guidance on utilizing the hand throttle control for your Pedego electric bike.
Please Select Your Bike Model: Avenue | Boomerang | Boomerang Platinum | Cargo | City Commuter | Comfort Cruiser | Element V1 | Element V2 | Element Platinum | Interceptor | Interceptor Platinum | Latch | Moto | Ridge Rider | Stretch | Tandem | Trail Tracker | Trike | Fat Tire Trike |
1. Bike Models:
- Cargo
- Element V2
- Element Platinum
- Boomerang
- Boomerang Platinum
- Element Platinum
- City Commuter
- City Commuter Mid-Drive
- City Commuter Platinum
- Interceptor
- Interceptor Platinum
- Latch
- Moto
- Ridge Rider
- Stretch
- Trail Tracker
- Trail Tracker Gorilla
- Trike Fat Tire

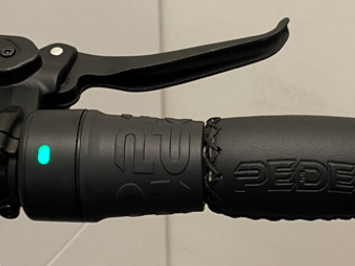

When the pedal assist mode is set to “0”, the pedal assist and throttle function(s) do not engage, and the LED on the throttle will be red. When the pedal assist mode is set to “6” the pedal assist function does not engage and the throttle will accelerate the bike forward. In this mode, the LED on the throttle will be blue. The throttle control is operated on the right hand side. The throttle is controlled by twisting it from its resting position. The farther the throttle switch is from its resting position, the more power is delivered to the motor to accelerate the Pedego. When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes. Pedego bikes also come with a Throttle Override function which allows the throttle to work in pedal assist modes 1-5. When the pedal assist mode is set to 1-5, the LED on the throttle will be green.
2. Bike Models:
- Avenue
- City Commuter
- Comfort Cruiser
- Element-V1
- Trike

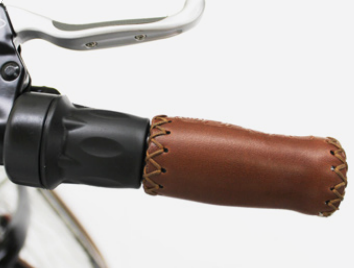

When the pedal assist mode is set to “0”, the pedal assist and throttle function(s) do not engage. When the pedal assist mode is set to “6” the pedal assist function does not engage and the throttle will accelerate the bike forward. The throttle control is operated on the right hand side. You control the throttle by twisting it from its resting position. The farther the throttle switch is from its resting position, the more power is delivered to the motor to accelerate the Pedego. When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes. The Pedego also comes with a Throttle Override function which allows the throttle to work in pedal assist modes.
3. Bike Models:
- Tandem
- Trail Tracker
- Trail Tracker 20"

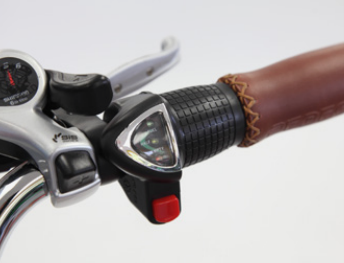

Your Pedego electric bike is equipped with a power and throttle control on the right hand side. To power on your bike, first make sure the switch to your battery is in the “ON” position. Next, press the red button on the throttle control, if your battery is charged all three lights (red, yellow, green) should illuminate. The three lights indicate your battery level; green being high-SOC (state of charge), yellow being mid-SOC, and red being low-SOC. You control the throttle by twisting it from its resting position. The farther the throttle switch is from its resting position, the more power is delivered to the motor to accelerate the Pedego. When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes. To power off the bike, press the red button and the battery indicator lights will turn off.
