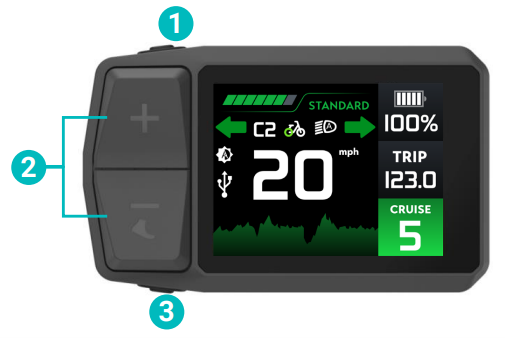

DISPLAY INTERFACE
Note: If this is not your display, please click here.
1. POWER BUTTON
- Press to turn on the bike.
- Press (with the bike on) to turn the headlight on or off.
- Press and hold to turn the bike off.
2. ADJUST BUTTONS
- Press the “+” or “-” buttons to adjust the assist level.
- Press and hold the “+” button to activate the USB C charging.
- Press and hold the “-” button to enable walk mode. This will only activate when the assist level is set to OFF.
- In the setting menu, press the “+” or “-” buttons to adjust the selection.
3. SET BUTTON
- Press and hold to enter the setting menu.
- In the setting menu, press the SET button to select an item, and press and hold the SET button to exit the setting menu.
ASSIST MODES
- To toggle between Cruise Assist and Torque Assist, go to Setting Menu -> General -> Pedal Assist

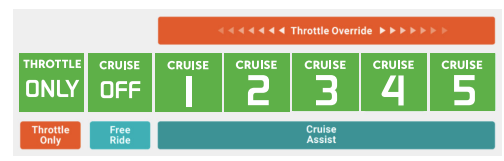

CRUISE ASSIST MODE
THROTTLE OVERRIDE- Full power on demand. Overrides pedal assistance.
FREE RIDE- Pedal just like a normal bicycle with all the display features active.
CRUISE ASSIST- Reaches designated speeds while pedaling.

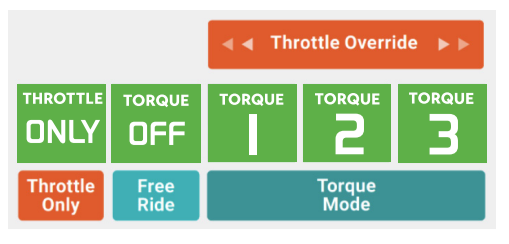

TORQUE ASSIST MODE
THROTTLE ONLY- Full power on demand. No automatic pedal assistance.
FREE RIDE- Pedal just like a normal bicycle with all the display features active.
TORQUE ASSIST- Proportional assistance based on how hard you pedal
PERFORMANCE MODES
There are three Performance Modes: MELLOW, STANDARD, and PEDEGO.
- MELLOW mode has a relaxed acceleration profile at top speed of 15mph.
- STANDARD mode has a comfortable acceleration profile and a top speed of 20mph.
- PEDEGO mode has a rapid acceleration profile and a top speed of 20mph.
The selected Performance Mode will be shown on the main screen.
To toggle between Performance Modes, go to Setting Menu -> General -> Perfor. Mode
MULTIFUNCTION SWTICH
LEFT AND RIGHT TURN SIGNAL
1. Press and release to turn on signal indefinitely, press again to turn off.
2. Press and hold to turn on. Signal will turn off immediately when released.
HEADLIGHT HIGH AND LOW BEAM
1. Press and release to toggle high/low headlight beam when the headlight is on.
AUXILIARY BUTTON (AFTERMARKET ACCESSORY COMPATIBLE)
1. Turn On/Off
a. Press and hold for one second to turn on/off.
2. Change Mode
a. Press and release to change the mode if applicable.
CLASS FUNCTIONALITY
Class 1, 2 or 3 are classifications for e-bikes that denote their maximum assisted speed. If you'd like to learn more and how to adjust the class setting please visit the following article.
