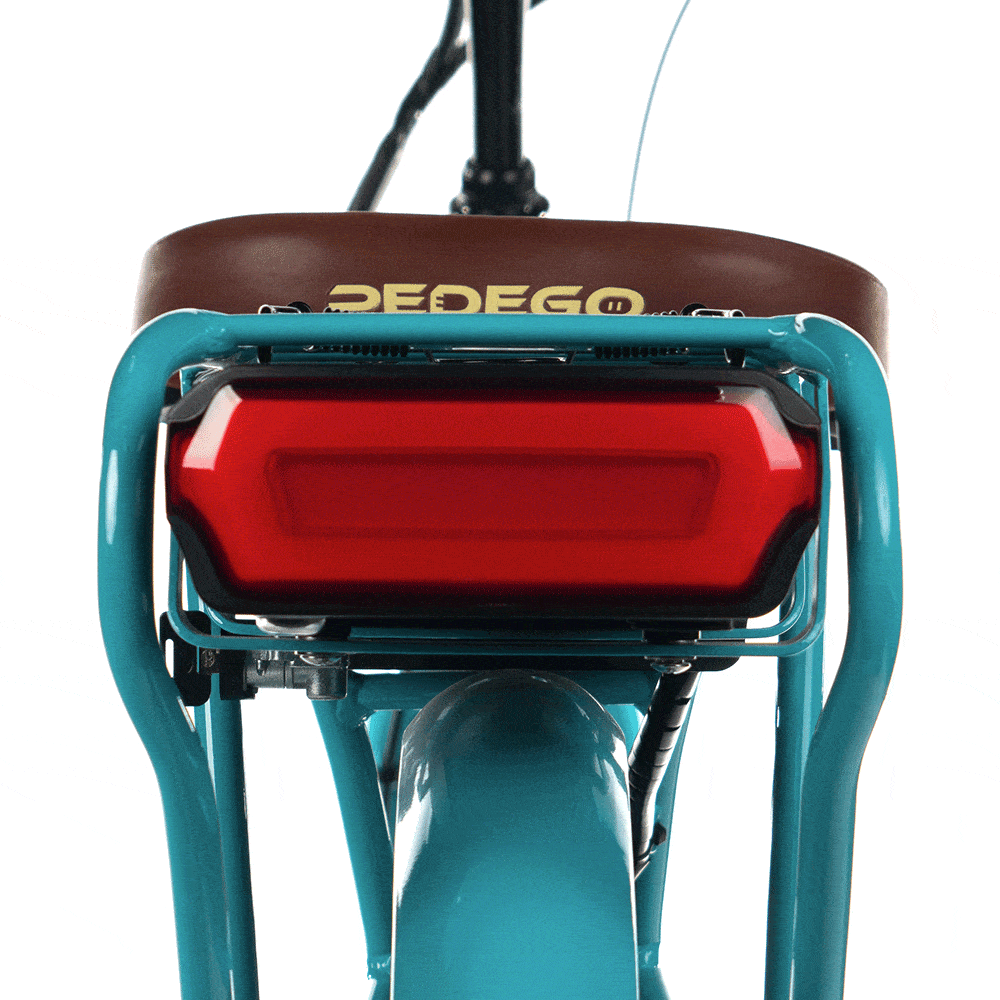

The Pedego Radiant Rear Light is a versatile accessory that enhances both safety and visibility during rides. With integrated features such as a running light, brake light, and turn signals, it offers comprehensive functionality for cyclists. Follow these step-by-step instructions to seamlessly install the Pedego Radiant Rear Light on your bike:
Step 1: Compatibility Check
Begin by inspecting the back of your bike's display. If you observe a secondary plug protruding from the display, your bike is compatible with the Pedego Radiant Rear Light (model number 54023).
Step 2: Installation Process
For successful installation, your bike will need a rear rack (specific to your bike model) and an extension cable, specifically the 46009 Quick Disconnect Cable with communication capability. This extension cable should be connected under the crank. All features of the rear light are designed to be plug-and-play, simplifying the installation process.
Step 3: Activating Turn Signal Functions
To enable the turn signal feature, connect the 42026 Turn Signal Switch to the secondary plug located on the rear of your bike's display. Mount the switch onto your handlebar for easy access.
Additional Note
If your Pedego bike already possesses an integrated rear light battery, simply plug in the turn signal switch to unlock additional features alongside the existing brake and running light functions.
Exception
For early production Avenues may lack the secondary plug on the rear of the display, rendering them unable to utilize the turn signals, an alternative solution exists. Despite this limitation, the rear Radiant light can still be installed to make use of the running and brake light features. In such cases, you'll need a supplementary extension cable: the 46008 Quick Disconnect Cable without communication capability for installation.
By following these straightforward steps, you can enhance the safety and functionality of your bike with the Pedego Radiant Rear Light. Enjoy improved visibility and peace of mind during your rides.
