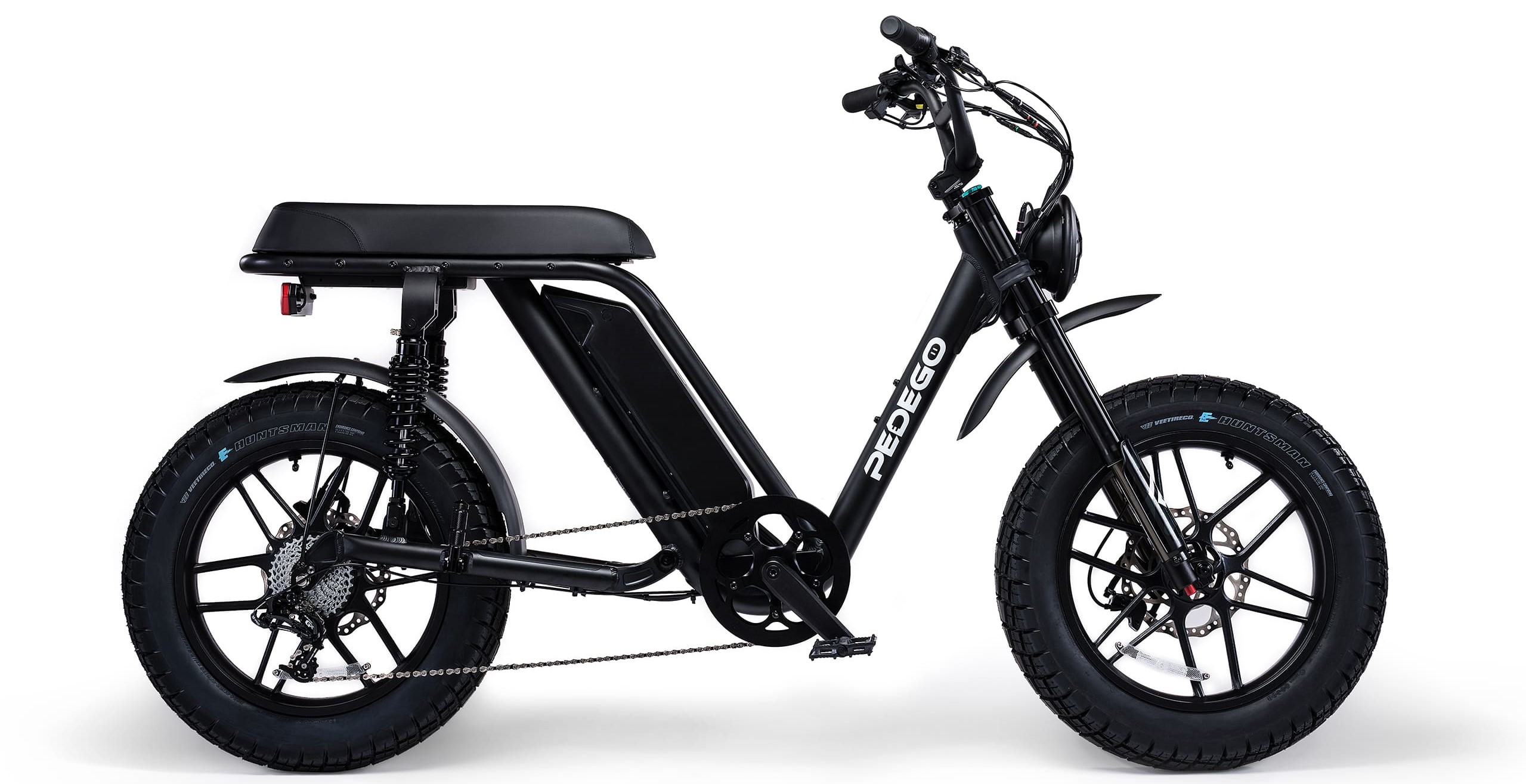

Specifications Menu for the Pedego Moto Electric Bike

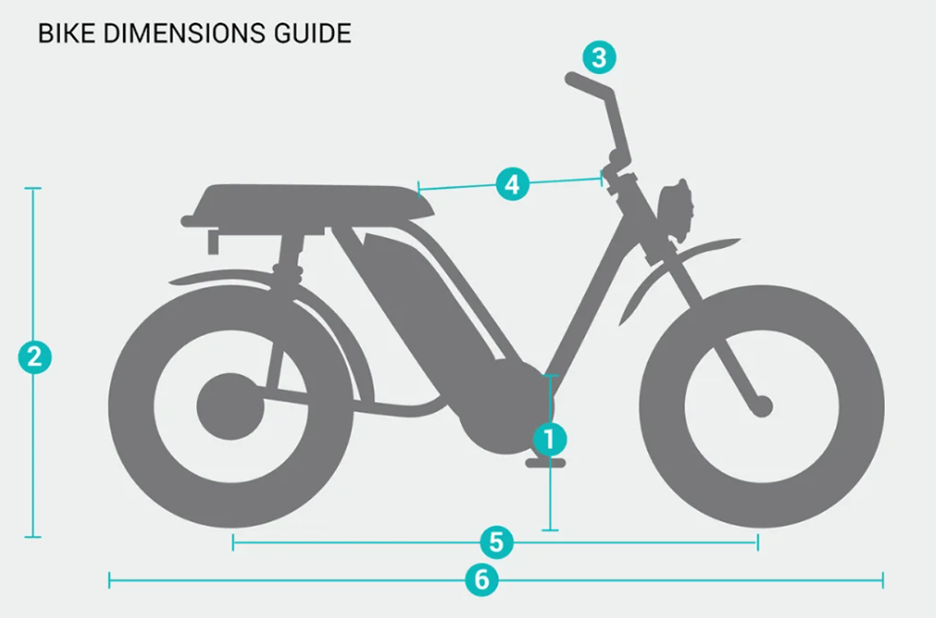

- Dimension
| Dimensions | |
|---|---|
| 1. Stand Over Height | 16.1"(410mm) |
| 2. Saddle Height | 33.9"(860mm) |
| 3. Handlebar Width | 28.4"(720mm) |
| 4. Reach | 18.5"(470mm) |
| 5. Wheelbase | 53.2"(1350mm) |
| 6. Overall Length | 76"(1930mm) |
Click here to see the recommended rider height and size for each bike model.
- Weights
| Weight | |
|---|---|
| Bike | 40.4 kg / 89.1 lb |
| Battery | 5.2 kg / 11.5 lb |
| Weight Limit | 400 LBS (181 kg) |
- Electronics
| Electronics | |
|---|---|
| Motor | 750W Rear Hub Motor |
| Battery | 48V 20Ah UL2271 Certified Battery Pack w/ Resin Potting |
| Charger | 2A Pedego Charger, 4A Pedego Super Charger Available Aftermarket |
| HMI Display | Color LCD w/ Ambient Light Sensor & USB-C Charge Port |
| Multi-function Switch | Turn Signals, Toggle Headlight H/L Beam, Auxiliary Switch |
| Controller | 28A w/ Custom PedalSense Software |
| Assist | Cruise or Torque Assist w/ 3 Unique Performance Modes |
| Pedal Sensor | Integrated Bottom Bracket Torque & Cadence Sensor |
| Throttle | Pedego Twist Throttle w/ Internal Safety Switch & PAS LED Indicator |
| Headlight | Moto Style High/Low Beam w/ Running Light |
| Taillight | Radiant Taillight w/ Active Brake Light, Running Light & Turn Signals |
| Top Speed | Class 1: 20MPH, Class 2: 20MPH, Class 3 Ready: 28MPH |
- Drivetrain
| Drivetrain | |
|---|---|
| Crank Arms | 150mm Aluminum Alloy, Black |
| Chainring | 52T w/ Dual Sided Chain Guide, Black |
| Pedals | Composite Platform w/ Integrated Reflectors |
| Derailleur | SRAM GX 10 Speed Rear Derailleur, Short Cage |
| Shift Lever | SRAM GX 10 Speed Trigger Shifter |
| Cassette | SRAM PG-1030 11-32T, Nickel Chrome Plated |
| Chain | KMC E10S 1/2x11/128" w/ 158 Links |
- Frame
| Frame | |
|---|---|
| Size | One Size |
| Colors | Matte Black, Matte Blue |
| Material | 6061-T6 Aluminum Alloy |
| Type | Full Suspension Moto Style w/ 140mm Front & 62mm Rear Travel |
| Fork | Dual Crown Coil Sprung Fork w/ 15mm Thru Axle, Adjustable Compression & Rebound |
| Shock | Dual Coil-Over Shocks w/ Hydraulic Damping |
| Fenders | Composite Moto Style Compact Dirt Fenders Front & Rear, Black |
| Kickstand | Aluminum Alloy w/ Adjustable Composite Foot, Black |
| Pegs | Anodized Aluminum Alloy Folding Pegs, Black |
- Component
| Component | |
|---|---|
| Handlebars | Freestyle Low Rise, 31.8mm Clamp, 720mm Width x 176mm Rise |
| Grips | Pedego Custom Ribbed Rubber Grips, Black |
| Stem | Aluminum Alloy, 31.8mm Clamp, 45mm Length, 30 Degree Rise |
| Headset | ZS44/ZS44/30mm, Black |
| Saddle | Moto Style w/ Black Synthetic Cover |
- Brakes
| Brakes | |
|---|---|
| Calipers | Tektro HD-E395, 2 Piston Forged Aluminum Body |
| Levers | Tektro HD-E395, 3 Finger Cast Aluminum Lever |
| Pads | Tektro E11.11 Resin Pads, 5mm Thickness |
| Rotors | Tektro TR-17 203mm Rotors, 2.3mm Thickness |
- Wheels
| Wheels | |
|---|---|
| Front Wheel | Pedego Custom Cast Aluminum 1 piece wheel w/ Bolt-On Axle |
| Rear Wheel | Pedego Custom Cast Aluminum 1 piece wheel w/ Integrated 750W Hub Motor |
| Tires | Vee Tire Co Huntsman 20x4.0" w/ Override Puncture Protection, Black |
| Tubes | CST 20x4.0" w/ Schrader Valve |
- Accessories
| Accessories | |
|---|---|
| Lights | Underglow LED Lights w/ 15 Color Modes |
| Rack | Rear Rack w/ Molle Paneling & Integrated Backrest Cushion |
| Saddle | Memory Foam Saddle |
| Handlebar | Freestyle High Rise Handlebar |
*Specifications subject to change without notice.
