Specifications Menu for the Pedego Interceptor Electric Bike
- Electronics
Component | Description |
---|---|
MOTOR | BLACK 52V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION |
BATTERY | 52 VOLT 17.5 OR 10.5 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. |
CHARGER | 52V 2 AMP PEDEGO FANLESS BATTERY CHARGER WITH CHARGE INDICATOR LIGHT |
CONTROLLER | 52 VOLT 22 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION |
PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE. |
TOP SPEED | CLASS 2: 20 MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY). |
DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
Component | Description |
---|---|
DERAILLEUR | SHIMANO ACERA RD-M360 8 SPEED, FULL METAL CONSTRUCTION AND TEFLON COATED BUSHINGS. |
CASSETTE | SHIMANO HYPERGLIDE HG200 8 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE. |
SHIFTER | MICROSHIFT DS85-8L 8 SPEED LEFT HAND GRIP SHIFTER WITH EASY TO READ GEAR INDICATOR. |
BOTTOM BRACKET | 68MM X 127.5MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY. |
CHAIN | SHIMANO HG40 1/2”x3/32” 122-128 LINKS WITH INNER PLATE CHAMFERING; 24”: 126 LINKS, 26”: 132 LINKS, 29”: 136 LINKS. |
CRANK | BLACK 3 PIECE CRANK WITH 52T 3/32” CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
PEDALS | BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
Component | Description |
---|---|
CALIPERS | STAR UNION OR TEKTRO 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID. |
LEVERS | STAR UNION OR TEKTRO 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY. |
PADS | CERAMIC OR ORGANIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. |
ROTORS | STAINLESS STEEL; 180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE. |
- Components
Component | Description |
---|---|
FRAME | 6061 T-6 AIRCRAFT QUALITY ALUMINUM; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL CABLE AND WIRE ROUTING. |
FORK | 24” OR 26” OR 29” CHROMOLY STEEL; 1 ⅛” THREADED STEERER TUBE; DISC BRAKE AND FENDER MOUNTS. |
HEADSET | BLACK EXTERNAL CUP 1 ⅛” THREADLESS WITH SEALED BEARINGS; EC34/28.6 | EC34/30. |
SEATPOST | BLACK 27.2MM OR 28.6MM X 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD. |
SADDLE | EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L X 265MM W. |
RIMS | 24” OR 26” OR 29” ALUMINUM ALLOY DOUBLE WALL RIMS; 24.7MM INTERNAL WIDTH; PINNED JOINT; 3D ANGLE DRILLED SPOKE HOLES; 12G X 36 HOLE. |
SPOKES | BLACK HEAVY DUTY 12 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
GRIPS | PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOR MATCHED BALLOON PACKAGE. |
HANDLEBAR | BLACK CRUISER STYLE; HI-TEN STEEL; 25.4MM STEM CLAMP DIAMETER; 24” STEP THRU 590MM WIDTH / 26” STEP THRU 620MM WIDTH / 26” & 29” CLASSIC 690MM WIDTH. |
STEM | ALUMINUM ANODIZED BLACK QUILL STYLE; 100MM LENGTH; 30° RISE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 ⅛”(28.6MM) THREADED STEERER TUBE. |
TIRES | 24”: SCHWALBE BIG BEN 24” X 2.15”; 26”: SCHWALBE FAT FRANK 26” x 2.35”; 29”: SCHWALBE BIG APPLE 29” x 2.35”; WITH NYLON OR KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE. |
- Extras
Component | Description |
---|---|
LIGHTS | FRONT: LED WITH ADJUSTABLE MOUNT 60 LUX; REAR: LED BUILT INTO BATTERY WITH BRAKE LIGHT FUNCTION; POWERED BY MAIN BATTERY AND CONTROLLED BY LCD. |
KICKSTAND | BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
- Weights
Component | Description |
---|---|
BIKE (NO BATTERY) | STEP THRU 24”: 53.4 LB; STEP THRU 26”: 56 LB; CLASSIC 26”: 57.4 LB; CLASSIC 29”: 58.4 LB. |
BATTERY | 52V/17.5Ah: 10 LB; 52V/10.5Ah: 8.8 LB. |
WEIGHT LIMIT | 250 LBS (113 kg) |

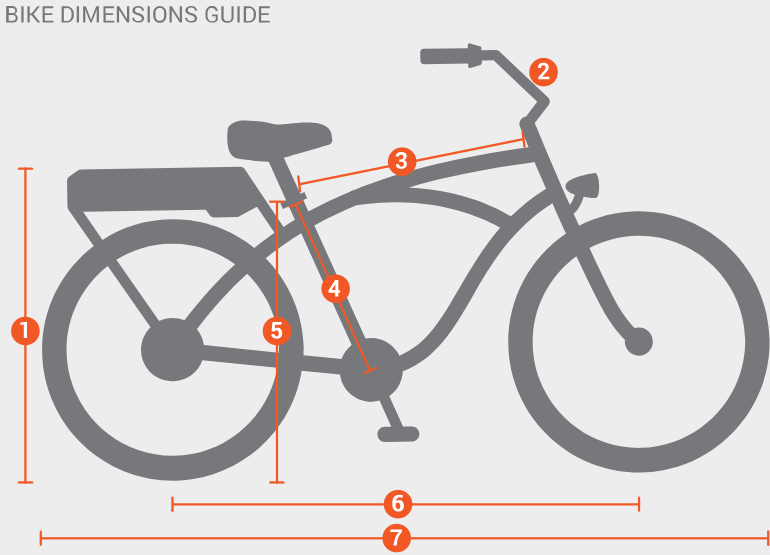

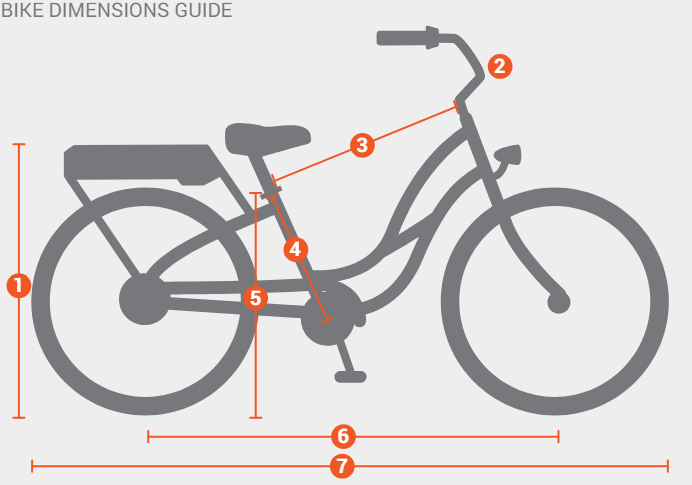

- Dimensions
Interceptor Step-Thru 26” | Measurements |
---|---|
1. REAR HEIGHT | 32” (813mm) |
2. HANDLEBAR WIDTH | 24.5” (622mm) |
3. SEAT TUBE TO HEADSET | 22.75” (578mm) |
4. SEAT CLAMP TO CRANK | 16” (406mm) |
5. SEAT CLAMP TO GROUND | 26.5” (673mm) |
6. AXLE TO AXLE | 48” (1219mm) |
7. END TO END | 75” (1905mm) |
Interceptor Classic 26” | Measurements |
---|---|
1. REAR HEIGHT | 32” (813mm) |
2. HANDLEBAR WIDTH | 29.5” (699mm) |
3. SEAT TUBE TO HEADSET | 23.5” (597mm) |
4. SEAT CLAMP TO CRANK | 17.5” (445mm) |
5. SEAT CLAMP TO GROUND | 28” (711mm) |
6. AXLE TO AXLE | 48” (1219mm) |
7. END TO END | 75” (1905mm) |
Interceptor Classic 29” | Measurements |
---|---|
1. REAR HEIGHT | 34.5” (876mm) |
2. HANDLEBAR WIDTH | 27” (686mm) |
3. SEAT TUBE TO HEADSET | 23.25” (591mm) |
4. SEAT CLAMP TO CRANK | 18.5” (470mm) |
5. SEAT CLAMP TO GROUND | 29.25” (743mm) |
6. AXLE TO AXLE | 48” (1219mm) |
7. END TO END | 75.5” (1969mm) |
Click here to see the recommended rider height and size for each bike model.
*Specifications subject to change without notice.
