Specifications Menu for the Pedego Element Fat Tire Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE W/ WATERPROOF CONNECTION. |
| BATTERY | 48V 10Ah W/ LG 21700 LI-ION CELLS OR 48V 14Ah W/ LG 18650 LI-ION CELLS |
| CHARGER | PEDEGO FANLESS 48V 2.0A SMART CHARGER STANDARD; 48V 4.0A SUPERCHARGER AVAILABLE AFTERMARKET. |
| CONTROLLER | 48 VOLT 18 AMP SINE WAVE CONTROLLER W/ CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE W/ THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST W/ THROTTLE OVERRIDE, AND THROTTLE ONLY MODE. |
| TOP SPEED | 2O MPH W/ MOTOR ASSISTANCE ONLY. |
| DISPLAY | 2.5” BACKLIT LCD SCREEN; 3 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | MICROSHIFT RD-M26S-7 7-SPEED; RESIN BODY W/ ENGINEERING COMPOSITE PULLEYS; FRAME MOUNTED DERAILLEUR PROTECTOR |
| CASSETTE | SHIMANO HYPERGLIDE HG20 7 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE. |
| SHIFTER | MICROSHIFT TS71-7R RIGHT HAND THUMB-TAP SHIFTER W/ OPTICAL GEAR DISPLAY. |
| BOTTOM BRACKET | 120MM x 179.5MM SQUARE TAPER SPINDLE W/ SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY. |
| CHAIN | KMC Z7 1/2”x3/32” 110 LINKS |
| CRANK | BLACK 3 PIECE CRANK W/ 5x130MM 48T 3/32” STEEL CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | WELLGO COMPOSITE PLATFORM PEDAL; 9/16” SPINDLE; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | TEKTRO MD-M280 MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; 5MM HEX INBOARD PAD ADJUSTMENT; INTEGRATED CABLE STOP W/ BARREL ADJUSTER. |
| LEVERS | BLACK ERGONOMIC LEVER W/ RUBBER FINGER PADDING; INTEGRATED MOTOR CUT OFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | TEKTROA10.11 METAL CERAMIC PAD W/ STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE. |
| ROTORS | TEKTRO TR 160-24 STAINLESS STEEL; 160MM DIAMETER. |
- Components
| Component | Description |
|---|---|
| FRAME | 20” FAT TIRE 6061-T6 ALUMINUM ALLOY; FULLY-INTEGRATED DOWNTUBE BATTERY MOUNT; SEMI-INTERNAL CABLE ROUTING. |
| FORK | 20” FAT TIRE RIGID STEEL FORK; 1 1⁄8” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS. |
| HEADSET |
ZERO STACK SEMI-INTEGRATED 1 1⁄8” x 1 1/2 THREADLESS; ZS44/28.6 | ZS56/30. |
| SEATPOST | BLACK 30.4MM x 350MM ALUMINIUM ALLOY RIGID SEATPOST; SHIM INCLUDED IN KIT BOX FOR 27.2MM AFTERMARKET SEATPOST. |
| SADDLE | MTB STYLE W/ SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 165MM W. |
| RIMS | 20” x 3” FAT TIRE ALUMINUM ALLOY DOUBLE WALL RIMS; FRONT 13G X 36H / REAR 12G X 36H |
| SPOKES | SILVER HEAVY DUTY STAINLESS STEEL SPOKES W/ BRASS NIPPLES. |
| GRIPS | BLACK CLASSIC MUSHROOM STYLE RIBBED RUBBER GRIPS; CUSTOM PEDEGO DESIGN |
| HANDLEBAR | BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 30MM RISE; 640MM WIDTH. |
| STEM | BLACK ALUMINUM ALLOY; 90MM LENGTH; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 1⁄8 (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER. |
| TIRES | KENDA BLACK WALL 20” x 4.0”; SINGLE RUBBER COMPOUND; WIRE BEAD; 30 PSI MAX; 20”x 4.0” INNER TUBE, SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | HEADLIGHT AVAILABLE AFTERMARKET. |
| KICKSTAND | BLACK ALUMINUM ALLOY REAR KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH W/ #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
| FENDERS | FENDER SET AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM FENDERS W/ STAINLESS STEEL HARDWARE. |
| REAR RACK | REAR RACK AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM; 25KG MAX WEIGHT CAPACITY. |
| BELL | BLACK LEFT HAND MINI ALUMINUM BELL. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | ONE SIZE: 52.8 LB. |
| BATTERY | 48V/10Ah: 6.4 LB; 48V/14AH: 7.6 LB |
| WEIGHT LIMIT | 250 LBS (113 kg) |

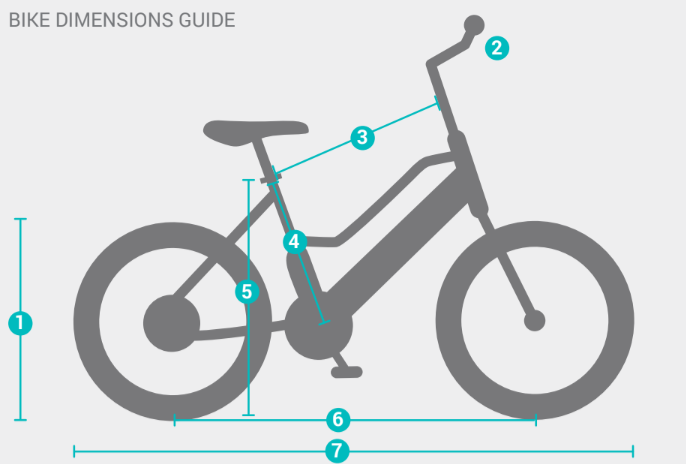

- Dimensions
| Element Fat Tire | Measurements |
|---|---|
| 1. REAR HEIGHT | 23” (584mm) |
| 2. HANDLEBAR WIDTH | 27.75” (654mm) |
| 3. SEAT TUBE TO HEADSET | 19.25” (432mm) |
| 4. SEAT CLAMP TO CRANK | 17.5” (445mm) |
| 5. SEAT CLAMP TO GROUND | 28.5” (724mm) |
| 6. AXLE TO AXLE | 40.5” (1029mm) |
| 7. END TO END | 63” (1600mm) |
*Specifications subject to change without notice.
