Specifications Menu for the Pedego Boomerang Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 52V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION. |
| BATTERY | 52 VOLT 17.5 OR 10.5 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. |
| CHARGER | 52V 2 AMP PEDEGO FANLESS BATTERY CHARGER WITH CHARGE INDICATOR LIGHT. |
| CONTROLLER | 52 VOLT 22 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE. |
| TOP SPEED | CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY). |
| DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | SHIMANO ACERA RD-M360 8 SPEED, FULL METAL CONSTRUCTION AND TEFLON COATED BUSHINGS. |
| CASSETTE | SHIMANO HYPERGLIDE HG200 8 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE. |
| SHIFTER | MICROSHIFT DS85-8L 8 SPEED LEFT HAND GRIP SHIFTER WITH EASY TO READ GEAR INDICATOR. |
| BOTTOM BRACKET | 68MM x 137MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY. |
| CHAIN | SHIMANO HG40 1/2”x3/32” 122-128 LINKS WITH INNER PLATE CHAMFERING; 24”: 120 LINKS, 26”: 124 LINKS. |
| CRANK | BLACK 3 PIECE CRANK WITH 52T 3/32” CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID. |
| LEVERS | STAR UNION 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | CERAMIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. |
| ROTORS | STAINLESS STEEL;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STOR- AGE; INTERNAL CABLE AND WIRE ROUTING. |
| FORK | RIGID CHROMOLY STEEL; 1 1⁄8” THREADED STEERER TUBE; DISC BRAKE AND FENDER MOUNTS. |
| HEADSET | ZERO STACK SEMI-INTEGRATED 1 1⁄8” THREADED; ZS44/28.6-26TPI | ZS44/30. |
| SEATPOST | BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD. |
| SADDLE | EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L x 265MM W. |
| RIMS | 24” OR 26” OR 29” ALUMINUM ALLOY DOUBLE WALL RIMS; 24.7MM INTERNAL WIDTH; PINNED JOINT; 3D ANGLE DRILLED SPOKE HOLES; 12G X 36 HOLE. |
| SPOKES | BLACK HEAVY DUTY 12 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOR MATCHED BALLOON PACKAGE. |
| HANDLEBAR | BLACK ERGONOMIC CITY STYLE; ALUMINUM ALLOY; 25.4MM CLAMP DIAMETER; 650MM WIDTH. |
| STEM | BLACK QUICK RELEASE ADJUSTABLE QUILL STYLE; 110MM LENGTH; 0-80 DEGREE ADJUSTABLE ANGLE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 1⁄8” (28.6MM) THREADED STEERER TUBE. |
| TIRES | SCHWALBE FAT FRANK 26” X 2.35”; SCHWALBE BIG APPLE 24” X 2.0” WITH RACE GUARD KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | FRONT: LED WITH ADJUSTABLE MOUNT 60 LUX; REAR: LED BUILT INTO BATTERY WITH BRAKE LIGHT FUNCTION; POWERED BY MAIN BATTERY AND CONTROLLED BY LCD. |
| KICKSTAND | BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | STEP THRU 24”: 54.2 LB; STEP THRU 26”: 56.4 LB. |
| BATTERY | 52V/17.5Ah: 10 LB; 52V/10.5Ah: 8.8LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

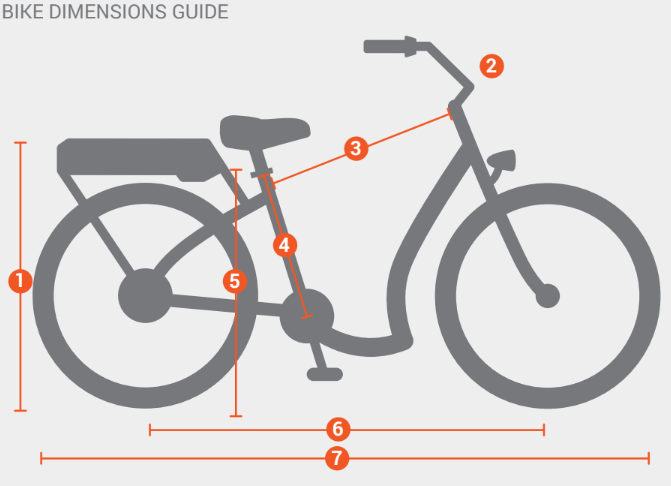

- Dimensions
| Boomerang 24" | Measurements |
|---|---|
| 1. REAR HEIGHT | 29.5” (749mm) |
| 2. HANDLEBAR WIDTH | 26” (660mm) |
| 3. SEAT TUBE TO HEADSET | 19.5” (495mm) |
| 4. SEAT CLAMP TO CRANK | 13.5” (343mm) |
| 5. SEAT CLAMP TO GROUND | 24.5” (622mm) |
| 6. AXLE TO AXLE | 43.5” (1105mm) |
| 7. END TO END | 68.5” (1740mm) |
| Boomerang 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 31” (787mm) |
| 2. HANDLEBAR WIDTH | 25” (635mm) |
| 3. SEAT TUBE TO HEADSET | 23.5” (597mm) |
| 4. SEAT CLAMP TO CRANK | 23” (584mm) |
| 5. SEAT CLAMP TO GROUND | 27” (686mm) |
| 6. AXLE TO AXLE | 47” (1194mm) |
| 7. END TO END | 74” (1880mm) |
*Specifications subject to change without notice.
