Specifications Menu for the Pedego Boomerang Platinum Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 52V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION. |
| BATTERY | 52 VOLT 17.5 OR 10.5 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. |
| CHARGER | 52V 2 AMP PEDEGO FANLESS BATTERY CHARGER WITH CHARGE INDICATOR LIGHT. |
| CONTROLLER | 52 VOLT 22 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE. |
| TOP SPEED | CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY). |
| DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | SHIMANO DEORE M6000 10 SPEED; INTEGRATED CLUTCH FOR MAXIMUM CHAIN RETENTION; RIDER TUNED FOR SHARP AND SILKY SHIFTS; MODEL NO: RD-M6000-10-SGS. |
| CASSETTE | SHIMANO DEORE M6000 10 SPEED HYPERGLIDE 11-36T; PRECISE AND CONSISTENT SHIFTING PERFORMANCE; MODEL NO: CS-HG50-10. |
| SHIFTER | SHIMANO DEORE M6000 10 SPEED; DYNA-SYS WITH OPTICAL GEAR DISPLAY; MODEL NO: SL-M6000-10-R. |
| BOTTOM BRACKET | 68MM x 127.5MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR. |
| CHAIN | 10 SPEED KMC X10EPT; RUSTBUSTER TREATMENT. |
| CRANK | BLACK 3 PIECE CRANK WITH 5x130MM 52T 3/32” CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | BLACK WELLGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; SEALED CARTRIDGE BEARING/ POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID. |
| LEVERS | STAR UNION 3 FINGER BALL END LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | CERAMIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. |
| ROTORS | STAINLESS STEEL;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL CABLE AND WIRE ROUTING. |
| FORK | 24” or 26” AIR SPRUNG SUSPENSION FORK; 80MM TRAVEL; 1 1⁄8” THREADED STEERER TUBE; ADJUSTABLE COMPRESSION WITH HYDRAULIC LOCKOUT. |
| HEADSET | BLACK ZERO STACK SEMI-INTEGRATED 1 1⁄8” THREADED; ZS44/28.6-26TPI | ZS44/30. |
| SEATPOST | CANE CREEK THUDBUSTER ST ELASTOMER SUSPENSION SEATPOST; PARALLEL LINKAGE TECHNOLOGY DELIVERS A CLEAR ADVANTAGE IN COMFORT AND CONTROL; 27.2MM x 350MM WITH 33MM OF TRAVEL. |
| SADDLE | EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L x 265MM W. |
| RIMS | 24” OR 26” ALUMINUM ALLOY DOUBLE WALL RIMS; 24.7MM INTERNAL WIDTH; PINNED JOINT; 3D ANGLE DRILLED SPOKE HOLES; 12G X 36 HOLE. |
| SPOKES | BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOR MATCHED BALLOON PACKAGE. |
| HANDLEBAR | BLACK ERGONOMIC CITY STYLE; ALUMINUM ALLOY; 25.4MM CLAMP DIAMETER; 650MM WIDTH. |
| STEM |
BLACK QUICK RELEASE ADJUSTABLE QUILL STYLE; 110MM LENGTH; 0-80 DEGREE ADJUSTABLE ANGLE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 1⁄8” (28.6MM) THREADED STEERER TUBE. |
| TIRES | SCHWALBE FAT FRANK 26” x 2.35” or BIG BEN 24” x 2.15” WITH K-GUARD KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | FRONT: LED WITH ADJUSTABLE MOUNT 60 LUX; REAR: LED BUILT INTO BATTERY WITH BRAKE LIGHT AND TURN SIGNAL FUNCTIONS; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY LCD. |
| KICKSTAND | BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | STEP THRU 24”: 54.4 LB; STEP THRU 26”: 53.4 LB. |
| BATTERY | 52V/17.5Ah: 10.0 LB; 52V/10.5Ah: 8.8LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

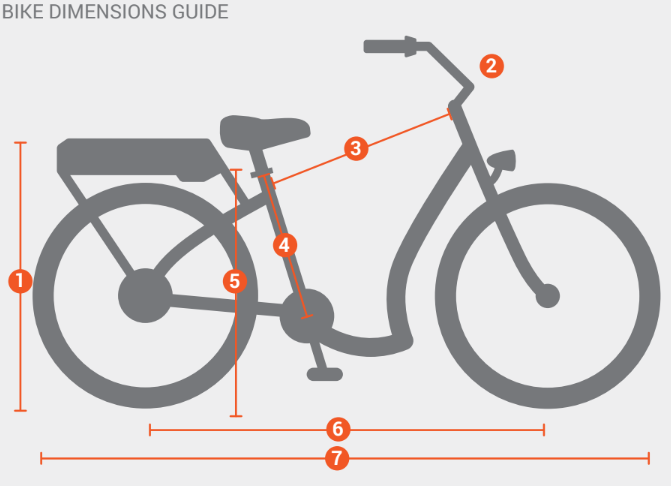

- Dimensions
| Boomerang Platinum 24" | Measurements |
|---|---|
| 1. REAR HEIGHT | 29” (737mm) |
| 2. HANDLEBAR WIDTH | 26” (660mm) |
| 3. SEAT TUBE TO HEADSET | 21” (533mm) |
| 4. SEAT CLAMP TO CRANK | 14” (356mm) |
| 5. SEAT CLAMP TO GROUND | 24” (610mm) |
| 6. AXLE TO AXLE | 44” (1118mm) |
| 7. END TO END | 69” (1753mm) |
| Boomerang Platinum 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 31” (787mm) |
| 2. HANDLEBAR WIDTH | 25” (635mm) |
| 3. SEAT TUBE TO HEADSET | 23.5” (597mm) |
| 4. SEAT CLAMP TO CRANK | 23” (584mm) |
| 5. SEAT CLAMP TO GROUND | 27” (686mm) |
| 6. AXLE TO AXLE | 47” (1194mm) |
| 7. END TO END | 74” (1880mm) |
Click here to see the recommended rider height and size for each bike model.
*Specifications subject to change without notice.
