Specifications Menu for the Pedego Comfort Cruiser Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | SILVER 36V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 35NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION. |
| BATTERY | 36 VOLT 10 OR 15 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS |
| CHARGER | 3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT. |
| CONTROLLER | 36 VOLT 18 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE |
| TOP SPEED | 2O MPH WITH MOTOR ASSISTANCE ONLY. |
| DISPLAY | 2.5” BACKLIT LCD SCREEN; 3 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | SHIMANO ACERA RD-M360 7-SPEED, FULL METAL CONSTRUCTION AND TEFLON COATED BUSHINGS. |
| CASSETTE | SHIMANO HYPERGLIDE HG20 7 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE. |
| SHIFTER | SHIMANO FT55 TOURNEY RIGHT HAND THUMB SHIFTER WITH EASY TO READ GEAR DISPLAY. |
| BOTTOM BRACKET | 68MM x 127.5MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY. |
| CHAIN | SHIMANO HG40 1/2”x3/32” 128 LINKS WITH INNER PLATE CHAMFERING. |
| CRANK | SILVER 3 PIECE CRANK WITH 3/32” 44T INTEGRATED CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | SILVER PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | SHIMANO BR-M375 MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; 5MM HEX INBOARD PAD ADJUSTMENT; INTEGRATED CABLE STOP WITH BARREL ADJUSTER. |
| LEVERS | TEKTRO ERGONOMIC LEVER WITH RUBBER FINGER PADDING; INTEGRATED LEFT HAND BELL; INTEGRATED MOTOR CUT OFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | SHIMANO RESIN WITH STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE. |
| ROTORS | SHIMANO SM-RT26; 180MM DIAMETER; ANTI LOOSENING WASHERS FOR QUICK AND SECURE ASSEMBLY; DESIGNED FOR RESIN PADS. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL CABLE AND WIRE ROUTING. |
| FORK | 24” OR 26” RIGID CHROMOLY STEEL; 1 ⅛” THREADED STEERER TUBE; DISC BRAKE AND FENDER MOUNTS. |
| HEADSET | SILVER 1 ⅛” THREADED; EC34/28.6-26TPI | EC34/30. |
| SEATPOST | SILVER 28.6MM x 300MM RIGID SEATPOST |
| SADDLE | STANDARD: CRUISER STYLE SADDLE; OPTIONAL: EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L x 265MM W. |
| RIMS | 24” OR 26” EXTRA STRENGTH DOUBLE WALL LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE. |
| SPOKES | SILVER HEAVY DUTY 12 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | STANDARD: BLACK WEAR RESISTANT PEDEGO GRIPS OPTIONAL: PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOR MATCHED BALLOON PACKAGE. |
| HANDLEBAR | SILVER CRUISER STYLE; HI-TEN STEEL; 25.4MM STEM CLAMP DIAMETER; 26” CLASSIC 690MM WIDTH / 26” STEP THRU 620MM WIDTH / 24” STEP THRU 580MM WIDTH. |
| STEM | SILVER ALUMINUM QUILL STYLE; 100MM LENGTH; 30 DEGREE RISE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 ⅛” (28.6MM) THREADED STEERER TUBE. |
| TIRES | STANDARD: KENDA WHITE WALL 24” x 2.125” OR 26” x 2.3”; OPTIONAL: SCHWALBE FAT FRANK 26” x 2.35” WITH K-GUARD KEVLAR FLAT PROTECTION OR SCHWALBE BIG APPLE 24” x 2.0” WITH K-GUARD KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | REAR: LED BUILT INTO BATTERY; POWERED AND CONTROLLED BY MAIN BATTERY VIA PUSH BUTTON. |
| KICKSTAND | SILVER ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | STEP TRHU 26”: 51.4 LB; CLASSIC 26”: 51.4 LB. |
| BATTERY | 36V/15Ah: 7.6 LB; 36V/10Ah: 7 LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

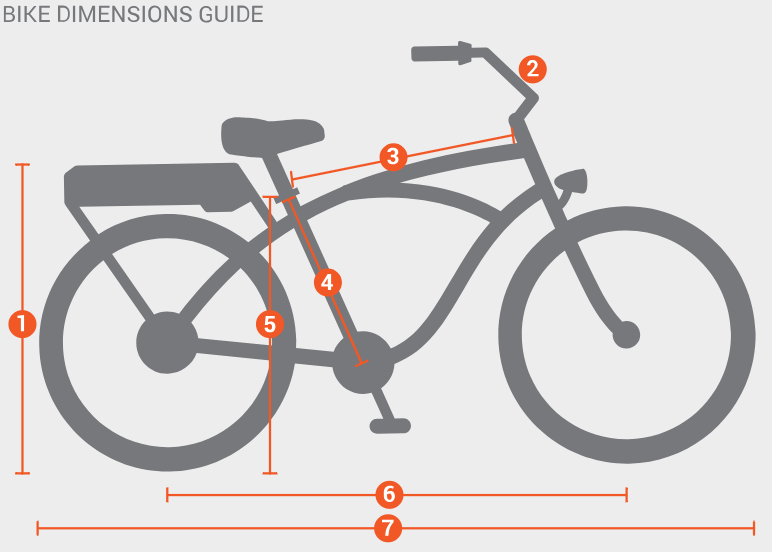

- Dimensions
| Comfort Cruiser Classic 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 31” (787mm) |
| 2. HANDLEBAR WIDTH | 27” (686mm) |
| 3. SEAT TUBE TO HEADSET | 24.25” (616mm) |
| 4. SEAT CLAMP TO CRANK | 17.5” (445mm) |
| 5. SEAT CLAMP TO GROUND | 27” (686mm) |
| 6. AXLE TO AXLE | 48” (1219mm) |
| 7. END TO END | 75” (1905mm) |
| Comfort Cruiser Classic 29" | Measurements |
|---|---|
| 1. REAR HEIGHT | 34.5” (876mm) |
| 2. HANDLEBAR WIDTH | 27” (686mm) |
| 3. SEAT TUBE TO HEADSET | 23.25” (591mm) |
| 4. SEAT CLAMP TO CRANK | 18.5” (470mm) |
| 5. SEAT CLAMP TO GROUND | 29.25” (743mm) |
| 6. AXLE TO AXLE | 48” (1219mm) |
| 7. END TO END | 77.5” (1969mm) |
| Comfort Cruiser Step Thru 24" | Measurements |
|---|---|
| 1. REAR HEIGHT | 29” (737mm) |
| 2. HANDLEBAR WIDTH | 23” (584mm) |
| 3. SEAT TUBE TO HEADSET | 22” (559mm) |
| 4. SEAT CLAMP TO CRANK | 14” (356mm) |
| 5. SEAT CLAMP TO GROUND | 24” (610mm) |
| 6. AXLE TO AXLE | 45” (1143mm) |
| 7. END TO END | 69” (1753mm) |
| Comfort Cruiser Step Thru 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 31” (787mm) |
| 2. HANDLEBAR WIDTH | 25” (635mm) |
| 3. SEAT TUBE TO HEADSET | 24.25” (616mm) |
| 4. SEAT CLAMP TO CRANK | 16” (406mm) |
| 5. SEAT CLAMP TO GROUND | 27” (686mm) |
| 6. AXLE TO AXLE | 48” (1219mm) |
| 7. END TO END | 75” (1905mm) |
*Specifications subject to change without notice.
