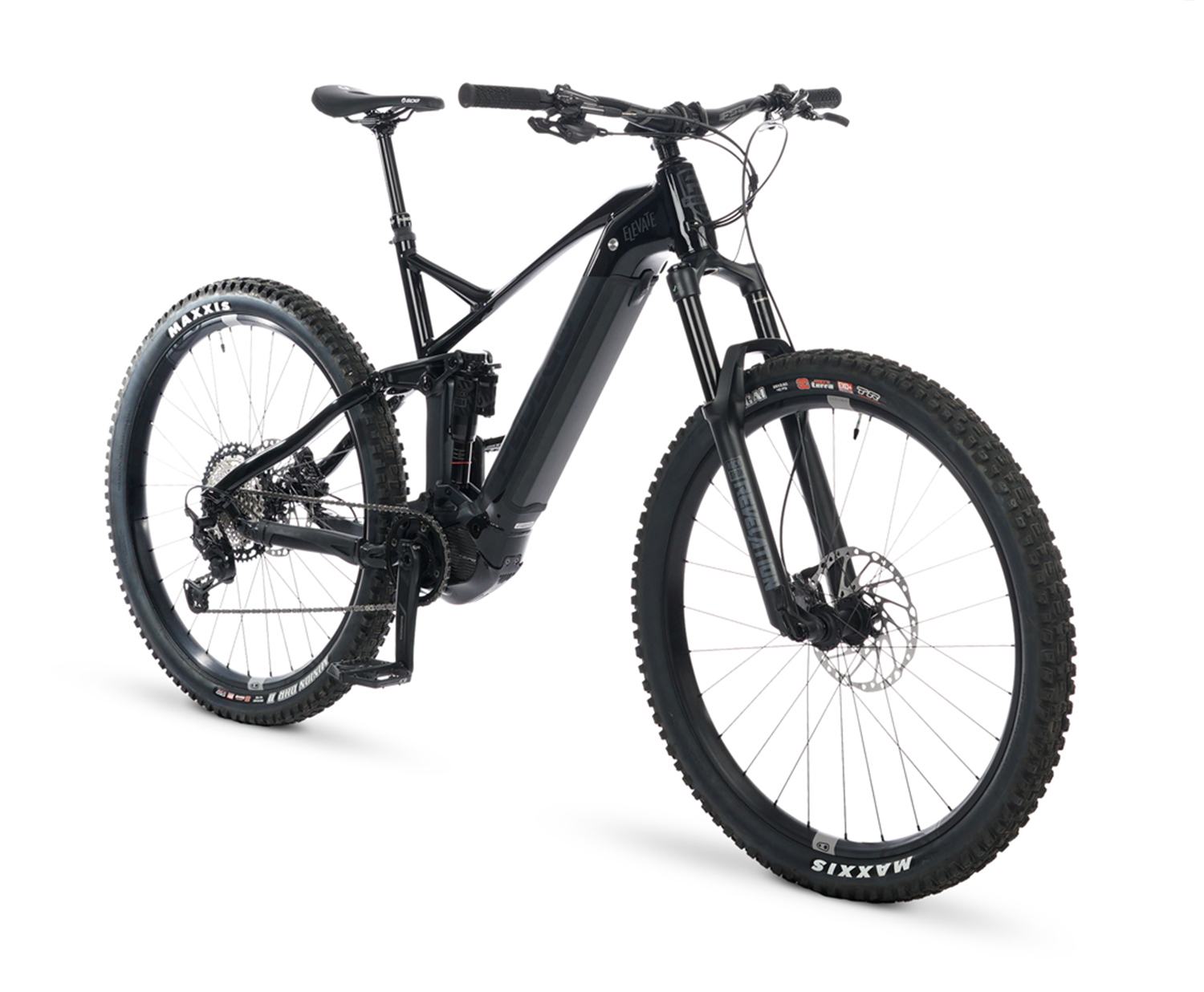

Specifications Menu for the Pedego Elevate Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | SHIMANO STEPS EP8 BRUSHLESS GEARED MID-DRIVE MOTOR; 250 WATT NOMINAL POWER RATING; 85NM MAX TORQUE OUTPUT; COMPACT DESIGN WITH NARROW 177MM Q-FACTOR. |
| BATTERY | DARFON E4C0C 36 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS. |
| CHARGER | DARFON 5.6 AMP SMART BATTERY CHARGER WITH CHARGE INDICATOR LIGHT. |
| CONTROLLER | SHIMANO 36V CONTROLLER; INTEGRATED INTO DRIVE UNIT. |
| ASSIST | FREE RIDE MODE (ASSIST OFF), THREE LEVELS OF PEDAL ASSIST: ECO, TRAIL, BOOST; ONE LEVEL OF WALK ASSIST; CUSTOMIZE SUPPORT LEVELS VIA BLUETOOTH. |
| DISPLAY | DYNAMIC EASY TO READ LCD; WIRELESSLY CUSTOMIZE PREFERENCES VIA BLUETOOTH; SPECIFICALLY DESIGNED TO BE COMPACT AND DURABLE FOR MTB RIDING. |
| TOP SPEED | 2O MPH WITH MOTOR ASSISTANCE ONLY |
| SWITCH UNIT | SHIMANO STEPS EP8 SWITCH UNIT; ERGONOMIC DESIGN WITH INTUITIVE OPERATION; CUSTOMIZABLE VIA E-TUBE PROJECT. |
- Drivetrain
| Component | Description |
|---|---|
| CHAIN GUIDE | SHIMANO SM-CDE800 CHAIN DEVICE. |
| REAR DERAILLEUR | SHIMANO RD-M8100 12-SPEED; INTEGRATED CLUTCH FOR MAXIMUM CHAIN RETENTION; RIDER TUNED FOR SHARP AND SILKY SHIFTS; MODEL NO: RD-M8100-SGS. |
| CASSETTE | SHIMANO XT M8100 12 SPEED HYPERGLIDE+ 10-51T; WIDE RANGE AND SMOOTH GEAR STEPS FOR 1X12; DESIGNED FOR AGGRESSIVE TRAIL RIDING; MODEL NO: CS-M8100-12t. |
| SHIFTERS | SHIMANO XT M8100 RAPIDFIRE PLUS 12 SPEED SHIFT LEVER; 20% LIGHTER SHIFTS WITH 2-WAY RELEASE; I-SPEC EV; MODEL NO: SL-M8100-R. |
| BOTTOM BRACKET | SHIMANO HOLLOWTECH II 24MM HOLLOW STEEL SPINDLE; INTEGRATED DUAL TORQUE SENSORS. |
| CHAIN | SHIMANO CN-M8100-12 SPEED. |
| CRANK | SHIMANO 3 PIECE CRANKS; SHIMANO DIRECT MOUNT 36T 3/32” CHAINRING WITH DYNAMIC CHAIN ENGAGEMENT; 165MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | CRANK BROTHERS STAMP 1 LARGE PLATFORM PEDAL; 9/16” FULLY SEALED AXLE; NYLON COMPOSITE BODY WITH REPLACEABLE STEEL TRACTION PINS; 100% SERVICEABLE. BEARING AND BUSHING SYSTEM. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | SHIMANO XT M8120 HYDRAULIC DISC BRAKE CALIPER; 4-PISTON CALIPER PROVIDES CONSISTENT BRAKING PERFORMANCE AND RELIABLE STOPPING POWER IN ALL CONDITIONS; MODEL NO: BR-8120. |
| LEVERS | SHIMANO XT M8100 HYDRAULIC DISC BRAKE LEVER; SLEEK AND RESILIENT MASTER CYLINDER DESIGN; SERVOWAVE HIGH POWER BRAKE; MODEL NO: BL-M8100. |
| PADS | SHIMANO N03A-RF RESIN BRAKE PADS; LOW NOISE WITH EXCELLENT POWER MODULATION. |
| ROTORS | FRONT: SHIMANO DEORE RT64 203MM CENTERLOCK DISC ROTOR; COMPATIBLE WITH SHIMANO METAL AND RESIN BRAKE PADS REAR: SHIMANO DEORE RT-EM600 203MM CENTERLOCK DISC ROTOR; INTEGRATED SPEED SENSOR MAGNET; COMPATIBLE WITH SHIMANO METAL AND RESIN BRAKE PADS. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; 1 1⁄8”-1 1⁄2” TAPERED HEAD TUBE; 151MM TRAVEL FOUR BAR HORST LINK REAR SUSPENSION; INTEGRATED INTERNAL DOWNTUBE BATTERY; INTERNAL CABLE AND WIRE ROUTING. |
| FORK | ROCKSHOX REVELATION RC 29”; 150MM TRAVEL DEBONAIR SPRING; 35MM ALUMINUM STANCHIONS; 1 1⁄8”-1 1⁄2” TAPERED STEERER TUBE; 15X110MM MAXLE LITE; COMPRESSION DAMPING ADJUSTMENT WITH HYDRAULIC LOCKOUT; REBOUND DAMPING ADJUSTMENT |
| REAR SHOCK | ROCKSHOX SUPER DELUXE SELECT+ RT; EYE-TO-EYE 205MM; SHOCK TRAVEL 65MM; TRUNNION MOUNT; PEDAL COMPRESSION SWITCH; REBOUND DAMPING ADJUSTMENT. |
| HEADSET | BLACK ZERO STACK SEMI-INTEGRATED; SEALED CARTRIDGE BEARINGS; 1 1⁄8” - 1 1⁄2” THREADLESS TAPERED; ZS44/28.6 | ZS56/40. |
| SEATPOST | SDG TELLIS 30.9MM DROPPER SEATPOST WITH INTEGRATED SADDLE RAIL CLAMP; ON-THE-FLY SADDLE HEIGHT ADJUSTMENT WITH UP TO 125MM OF DROP. |
| SADDLE | SDG BEL-AIR V3 MAX. |
| RIMS | CRANK BROTHERS 29” RIM; 31.5MM INTERNAL WIDTH; 6013-T6 SERIES ALLOY; FRONT: 28 HOLE; REAR: 32 HOLE. |
| SPOKES | FRONT: SAPIM E-LIGHT; REAR: SAPIM STRONG. |
| GRIPS | SDG THRICE 33MM INTEGRATED LOCK-ON GRIPS |
| HANDLEBAR | FSA COMET OS35; ALUMINUM ALLOY; 35.0MM STEM CLAMP DIAMETER; 8° BACKSWEEP, 5° UPSWEEP; 25MM RISE; 760MM WIDTH. |
| STEM | FSA COMET 0S35; 50MM LENGTH; 0° RISE; 35.0MM HANDLEBAR CLAMP DIAMETER; 1 1⁄8” (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER. |
| TIRES | FRONT: MAXXIS ASSEGAI 29” X 2.6”; 3C MAXX TERRA RUBBER COMPOUND; TUBELESS READY; 60 TPI CASING / FOLDING BEAD; EXO+ SIDEWALL PUNCTURE PROTECTION; PRESTA VALVE REAR: MAXXIS MINION DHR2 29” X 2.6”; 3C MAXX TERRA RUBBER COMPOUND; TUBELESS READY; 60 TPI CASING / FOLDING BEAD; EXO+ SIDEWALL PUNCTURE PROTECTION; PRESTA VALVE |
- Extras
| Component | Description |
|---|---|
| E-TUBE PROJECT | PROPRIETARY SHIMANO APPLICATION ALLOWS YOU TO UPDATE SYSTEM FIRMWARE AND CHANGE SETTINGS WHEN CONNECTED TO A SMARTPHONE OR TABLET. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | SMALL: 48 LB; MEDIUM: 48.5LB; LARGE: 49LB. |
| BATTERY | 36V/14Ah: 6.2LB. |
| WEIGHT LIMIT | 250 LBS (113kg) |

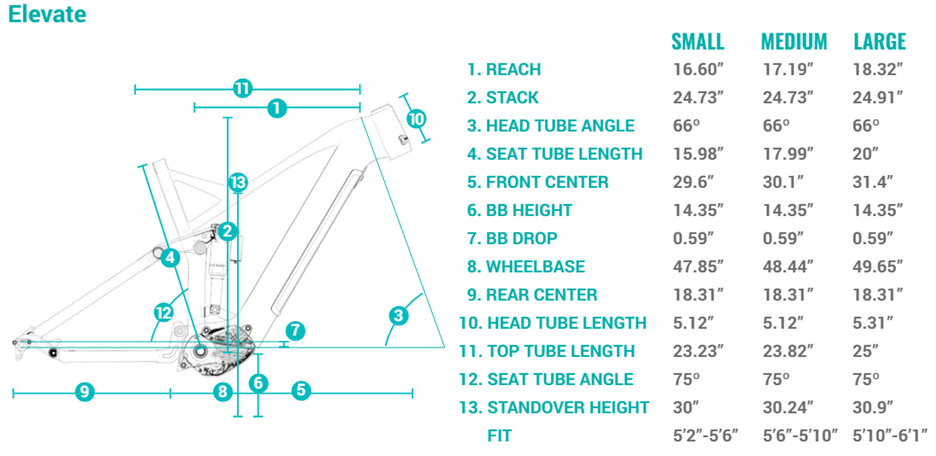

- Dimensions
*Specifications subject to change without notice.
