Specifications Menu for the Pedego City Commuter Platinum Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 52V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION. |
| BATTERY | 52 VOLT 17.5 OR 10.5 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. |
| CHARGER | 52V 2 AMP PEDEGO FANLESS BATTERY CHARGER WITH CHARGE INDICATOR LIGHT. |
| CONTROLLER | 52 VOLT 22 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE. |
| TOP SPEED | CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY). |
| DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | SHIMANO SLX M7000 10 SPEED; INTEGRATED CLUTCH FOR MAXIMUM CHAIN RETENTION; RIDER TUNED FOR SHARP AND SILKY SHIFTS; MODEL NO: RD-M7000-10-SGS. |
| CASSETTE | SHIMANO DEORE M6000 10 SPEED HYPERGLIDE 11-36T; PRECISE AND CONSISTENT SHIFTING PERFORMANCE; MODEL NO: CS-HG50-10. |
| SHIFTER | SHIMANO SLX M670 10 SPEED; DYNA-SYS WITH OPTICAL GEAR DISPLAY; MODEL NO: SL-M670-R. |
| BOTTOM BRACKET | 68MM x 127.5MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR. |
| CHAIN | S10 SPEED KMC X10E; RUSTBUSTER TREATMENT; 132 LINKS. |
| CRANK | BLACK 3 PIECE CRANK WITH 5x130MM 52T 3/32” CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | TEKTRO DORADO; 2 PISTON HYDRAULIC DISC BRAKE WITH FORGED ALUMINUM BODY, ADJUSTABLE HOSE ANGLE; TEKTRO NON-CORROSIVE MINERAL OIL. |
| LEVERS | TEKTRO DORADO FORGED ALUMINUM LEVER; 4 FINGER BLADE WITH BALL END; VISUALIZED RESERVOIR; INTEGRATED MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | CERAMIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. |
| ROTORS | TEKTRO WAVE TYPE;180MM DIAMETER; STIFFNESS, HIGH HEAT DISPERSION AND HEAT TOLERANCE; COMPATIBLE WITH ALL PAD COMPOUNDS. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL CABLE AND WIRE ROUTING. |
| FORK | 26” OR 28” AIR SPRUNG SUSPENSION FORK; 60MM OR 50MM TRAVEL; ADJUSTABLE COMPRESSION WITH HYDRAULIC LOCKOUT. |
| HEADSET | ZERO STACK SEMI-INTEGRATED 1 ⅛” THREADED; ZS44/28.6-26TPI | ZS44/30 |
| SEATPOST | BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD. |
| SADDLE | EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L x 265MM W. |
| RIMS | 24” OR 26” ALUMINUM ALLOY DOUBLE WALL RIMS; 24.7MM INTERNAL WIDTH; PINNED JOINT; 3D ANGLE DRILLED SPOKE HOLES; 12G X 36 HOLE. |
| SPOKES | BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOR MATCHED BALLOON PACKAGE. |
| HANDLEBAR | BLACK ERGONOMIC CITY STYLE; ALUMINUM ALLOY; 25.4MM CLAMP DIAMETER; 650MM WIDTH. |
| STEM | BLACK QUICK RELEASE ADJUSTABLE QUILL STYLE; 110MM LENGTH; 0-80 DEGREE ADJUSTABLE ANGLE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 ⅛” (28.6MM) THREADED STEERER TUBE. |
| TIRES | SCHWALBE FAT FRANK 28” x 2.0” WITH K-GUARD KEVLAR FLAT PROTECTION OR SCHWALBE BIG APPLE 26” x 2.0” WITH RACEGUARD FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | FRONT: LED WITH ADJUSTABLE MOUNT 60 LUX; REAR: LED BUILT INTO BATTERY WITH BRAKE LIGHT AND TURN SIGNAL FUNCTIONS; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY LCD. |
| KICKSTAND | BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
| FENDERS | MATTE BLACK STEEL FULL LENGTH FENDERS WITH INTEGRATED MUD FLAPS; STAINLESS STEEL STAYS. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | STEP THRU 26”: 52 LB; STEP THRU 28”: 55.2 LB; CLASSIC 28”: 55.8 LB. |
| BATTERY | 52V/15Ah: 9.2 LB; 52V/10Ah: 8.8 LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

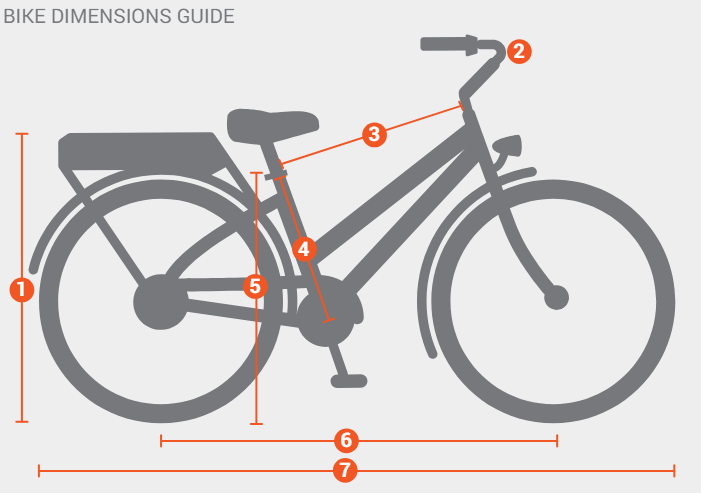

- Dimensions
| City Commuter Platinum Step Thru 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 31” (787mm) |
| 2. HANDLEBAR WIDTH | 26” (660mm) |
| 3. SEAT TUBE TO HEADSET | 21” (533mm) |
| 4. SEAT CLAMP TO CRANK | 15” (381mm) |
| 5. SEAT CLAMP TO GROUND | 26.5” (673mm) |
| 6. AXLE TO AXLE | 45” (1143mm) |
| 7. END TO END | 70” (1778mm) |
| City Commuter Platinum Step Thru 28" | Measurements |
|---|---|
| 1. REAR HEIGHT | 32” (838mm) |
| 2. HANDLEBAR WIDTH | 26” (660mm) |
| 3. SEAT TUBE TO HEADSET | 22” (559mm) |
| 4. SEAT CLAMP TO CRANK | 17” (432mm) |
| 5. SEAT CLAMP TO GROUND | 29” (736mm) |
| 6. AXLE TO AXLE | 44.5” (1130mm) |
| 7. END TO END | 74” (1880mm) |

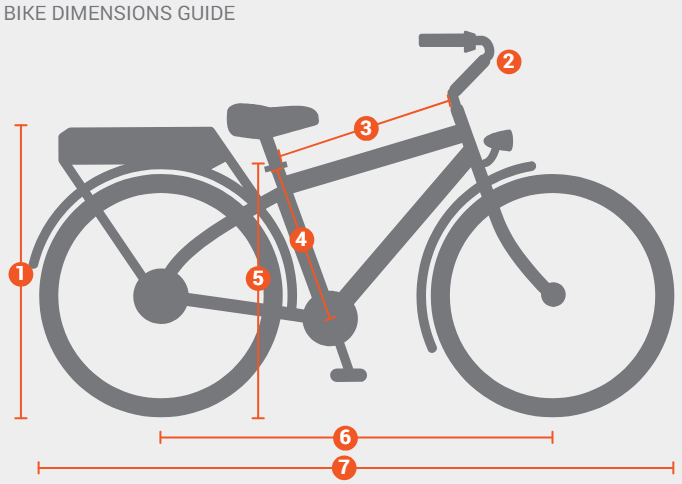

| City Commuter Platinum Classic 28" | Measurements |
|---|---|
| 1. REAR HEIGHT | 33” (mm) |
| 2. HANDLEBAR WIDTH | 26” (mm) |
| 3. SEAT TUBE TO HEADSET | 24” (mm) |
| 4. SEAT CLAMP TO CRANK | 18” (mm) |
| 5. SEAT CLAMP TO GROUND | 30” (mm) |
| 6. AXLE TO AXLE | 47” (mm) |
| 7. END TO END | 75” (mm) |
*Specifications subject to change without notice.
