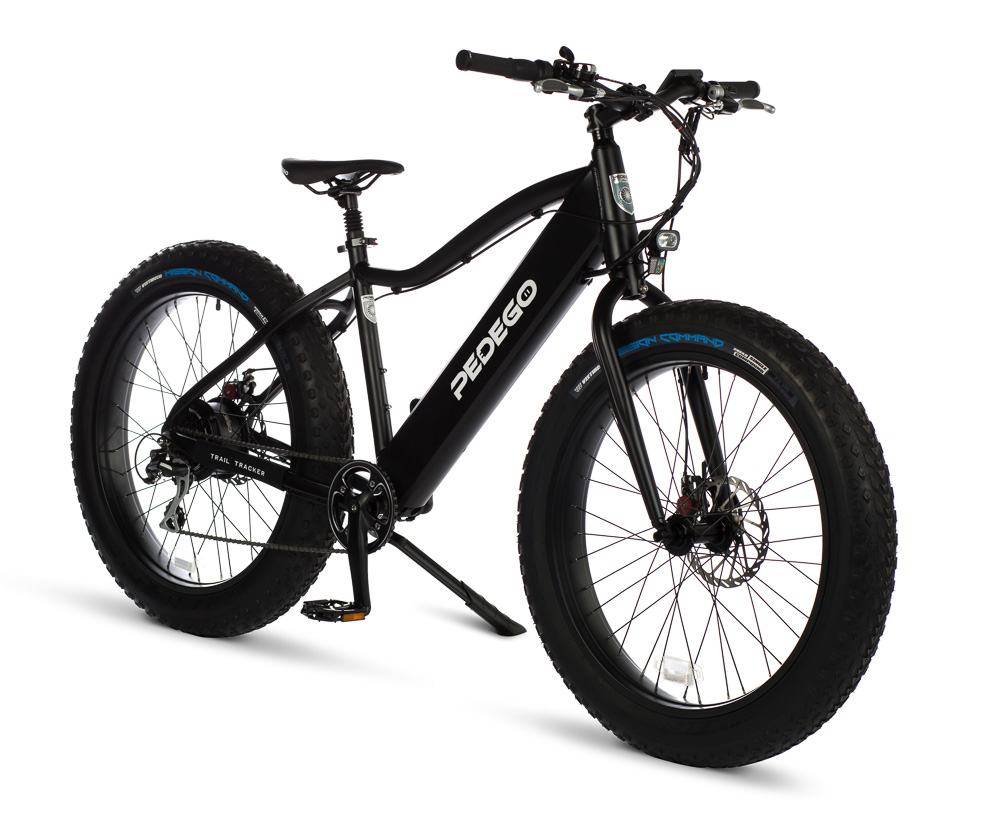

Specifications Menu for the Pedego Trail Tracker Fat Tire Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 749 WATT NOMINAL POWER RATING; 60NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION. |
| BATTERY | 48 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. |
| CHARGER | PEDEGO 2 AMP SMART CHARGER WITH A COMPLETELY SEALED CASE AND CHARGE INDICATOR LIGHT. |
| CONTROLLER | 48 VOLT 20 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND TORQUE OR CADENCE MODE, THROTTLE ONLY MODE. |
| TOP SPEED | CLASS 2: 2O MPH MAX, WITH PEDAL ASSIST AND THROTTLE ASSIST CLASS 3: 28 MPH MAX, WITH PEDAL ASSIST ONLY (SOFTWARE UPGRADE AVAILABLE THROUGH PEDEGO DEALER ONLY) |
| DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| DERAILLEUR | SRAM GX 10-SPEED REAR DERAILLEUR; EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE; CAGE LENGTH = SHORT. |
| CASSETTE | SRAM PG-1030 10-SPEED CASSETTE,11-36T; SMOOTH, POWERGLIDE II™ TECHNOLOGY PROVIDES SUPER-SMOOTH SHIFTING BETWEEN GEARS; DURABLE NICKEL CHROME FINISH. |
| SHIFTERS | SRAM GX 10-SPEED TRIGGER SHIFTER; SRAM X-GLIDE™ SHIFTING, EXACT ACTUATION™ FOR PRECISE AND DEPENDABLE 10-SPEED PERFORMANCE. |
| BOTTOM BRACKET | 100MM x 167MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; INTEGRATED TORQUE SENSOR. |
| CHAIN | KMC X10-EPT 10 SPEED; RUSTBUSTER TREATMENT; 132 LINKS. |
| CRANK | BLACK 3 PIECE CRANK WITH 5x130MM 52T CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS; INTEGRATED DOUBLE CHAINRING GUARD. |
| PEDALS | BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | STAR UNION 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE; MINERAL OIL BRAKE FLUID. |
| LEVERS | STAR UNION 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY. |
| PADS | LOW NOISE RESIN BRAKE PADS WITH STEEL BACKING PLATE, OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS. |
| ROTORS | STAINLESS STEEL;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLE BRAKING SURFACE. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; 1 ⅛”-1 ½” TAPERED HEAD TUBE; INTEGRATED DOWNTUBE BATTERY MOUNT; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING. |
| FORK | 26” FAT TIRE RIGID HIGH TENSILE STEEL; 1 ⅛”-1 ½” TAPERED THREADLESS STEERER TUBE; QUICK RELEASE 15MM x 150MM THRU-AXLE; DISC BRAKE MOUNTS. |
| FORK (Aftermarket) | ROCKSHOX BLUTO RL; 80MM TRAVEL, SOLO AIR SPRING, 51MM FORK OFFSET; MOTION CONTROL DAMPER WITH REBOUND AND COMPRESSION/LOCKOUT ADJUSTMENTS |
| HEADSET | BLACK ZERO STACK SEMI-INTEGRATED; 1 ⅛” - 1 ½” THREADLESS TAPERED; ZS44/28.6 | ZS56/40. |
| SEATPOST | BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD. |
| SADDLE | MTB STYLE WITH SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 144MM W. |
| RIMS | 26” x 3” FAT TIRE EXTRA STRENGTH DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE. |
| SPOKES | FRONT: BLACK 13 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. REAR: BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | PEDEGO RUBBER LOCK ON GRIPS; DIAMOND GRIP PATTERN. |
| HANDLEBAR | BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 9° BACKSWEEP, 5° UPSWEEP; 20MM RISE; 720MM WIDTH. |
| STEM | BLACK 3D FORGED ALUMINUM ALLOY; 80MM LENGTH; 7° RISE; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ⅛ (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER. |
| TIRES | VEE RUBBER MISSION COMMAND 26” x 4.0”; MULTI PURPOSE RUBBER COMPOUND, 58 A DUROMETER; WIRE BEAD; 8-20 PSI; 26 x 4.0” VEE RUBBER INNER TUBE, SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | FRONT: LED WITH ADJUSTABLE MOUNT 60 LUXFRONT: LED WITH ADJUSTABLE MOUNT 60 LUX |
| KICKSTAND | BLACK URSUS KAISER 69; ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | TRAIL TRACKER CLASSIC 26”: 58.8 LB; GORILLA EDITION: 62.2 LB; TT STEP THRU 26”: 60 LB. |
| BATTERY | 48V/14Ah: 8.2LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

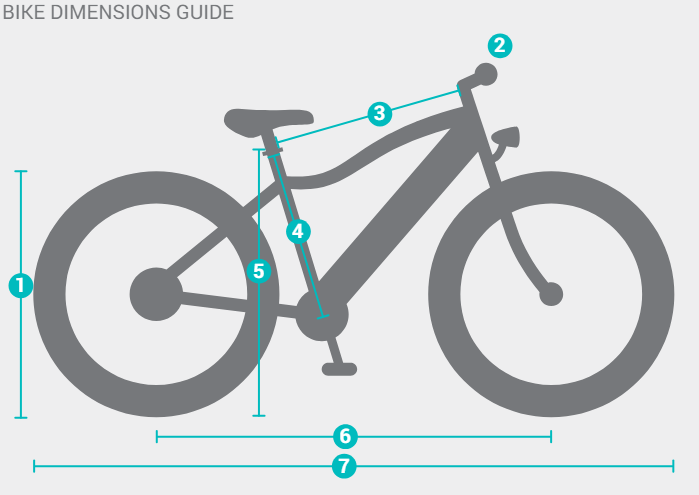

- Dimensions
| Trail Tracker Classic 26" | Measurements |
|---|---|
| 1. REAR HEIGHT | 29” (737mm) |
| 2. HANDLEBAR WIDTH | 28” (711mm) |
| 3. SEAT TUBE TO HEADSET | 22” (559mm) |
| 4. SEAT CLAMP TO CRANK | 18” (457mm) |
| 5. SEAT CLAMP TO GROUND | 30.5” (775mm) |
| 6. AXLE TO AXLE | 46.5” (1181mm) |
| 7. END TO END | 76” (1930mm) |

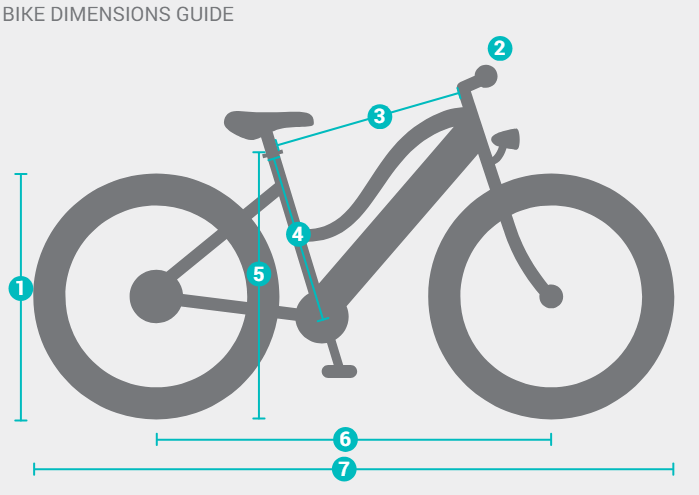

| Trail Tracker Step Thru | Measurements |
|---|---|
| 1. REAR HEIGHT | 29” (737mm) |
| 2. HANDLEBAR WIDTH | 28” (711mm) |
| 3. SEAT TUBE TO HEADSET | 22.25” (565mm) |
| 4. SEAT CLAMP TO CRANK | 16.5” (419mm) |
| 5. SEAT CLAMP TO GROUND | 29” (737mm) |
| 6. AXLE TO AXLE | 45.5” (1156mm) |
| 7. END TO END | 75” (1905mm) |
Click here to see the recommended rider height and size for each bike model.
*Specifications subject to change without notice.
