Specifications Menu for the Pedego Latch Electric Bike
- Electronics
| Component | Description |
|---|---|
| MOTOR | BLACK 52V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE W/ WATERPROOF CONNECTION. |
| BATTERY | 52 VOLT 17.5 OR 10.5 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE TECHNOLOGY WITH CANBUS COMMUNICATION; AUTO SLEEP FUNCTION. TURN SIGNAL CAPABLE WITH OPTIONAL TURN SIGNAL SWITCH. |
| CHARGER | 52V PEDEGO FANLESS 2 AMP SMART CHARGER; SEALED CASE WITH CHARGE INDICATOR LIGHT. |
| CONTROLLER | 52 VOLT 18 AMP SINE WAVE CONTROLLER W/ CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS. |
| THROTTLE | CUSTOM PEDEGO TWIST AND GO THROTTLE WITH COLOR LED ASSIST INDICATOR FOR MAXIMUM SAFETY; THREADED WATERPROOF CONNECTION. |
| PEDALSENSE® | FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST W/ THROTTLE OVERRIDE, AND THROTTLE ONLY MODE. |
| TOP SPEED | 15.5 MPH MAX WITH PEDAL ASSIST; 20MPH MAX WITH THROTTLE ASSIST. |
| DISPLAY | 3.5” BACKLIT LCD SCREEN WITH CANBUS COMMUNICATION; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE. |
- Drivetrain
| Component | Description |
|---|---|
| FREEWHEEL | STEEL 1/8*12T FOR CASSETTE TYPE. |
| BOTTOM BRACKET | CASSETTE TYPE BC1.37*24T SQUARE TAPER SPINDLE W/ SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY. |
| CHAIN | KMC 1⁄8” Z410; 96 LINKS W/ RUST BUSTER COATING |
| CRANK | BLACK 3 PIECE CRANK W/ 46T STEEL CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS. |
| PEDALS | BLACK WELLGO ALUMINUM FOLDING PEDAL; 9/16” SPINDLE; BALL BEARINGS; INTEGRATED PEDAL REFLECTORS. |
- Brakes
| Component | Description |
|---|---|
| CALIPERS | JUIN TECH M1 HYDRAULIC CALIPERS WITH CABLE ACTUATED MOVEMENT FOR INCREASED POWER AND LOW MAINTENANCE. |
| LEVERS | BLACK ERGONOMIC LEVERS W/ RUBBER FINGER PADDING; INTEGRATED MOTOR CUT OFF SWITCH FOR MAXIMUM SAFETY; INTEGRATED BELL ON LEFT LEVER. |
| PADS | SHIMANO M06 STYLE PADS; TOP LOADED FOR EASY PAD REPLACEMENT. |
| ROTORS | JUIN; 160MM DIAMETER. |
- Components
| Component | Description |
|---|---|
| FRAME | 6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING. |
| FORK | 20” RIGID HIGH TENSILE STEEL; 1 1⁄8” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS. |
| HEADSET | BLACK ZERO STACK SEMI-INTEGRATED 1 1⁄8” THREADLESS; ZS44/28.6 | ZS44/30. |
| SEATPOST | BLACK 31.8MM X 580MM RIGID POST; INTEGRATED SADDLE RAIL CLAMP. |
| SADDLE | INTERMEDIATE COMFORT SADDLE WITH SOFT FOAM; CENTER CHANNEL CUTOUT; DUAL SIDE FACING PEDEGO LOGO; 275MM L X 185MM W. |
| RIMS | 20” E-BIKE RATED DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 13G X 36 HOLE. |
| SPOKES | BLACK HEAVY-DUTY 13 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES. |
| GRIPS | BLACK PEDEGO GRIP WITH HAND STITCHING AND FOAM PADDING. |
| HANDLEBAR | BLACK MTB STYLE FLAT BAR; ALUMINUM ALLOY; 25.4MM STEM CLAMP DIAMETER; 580MM WIDTH. |
| STEM | BLACK ALUMINUM ALLOY FOLDING STEM; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHTADJUSTABLE 0-80MM; FOR 1 1⁄8” (28.6MM) THREADLESS STEERER TUBE. |
| TIRES | KENDA K1045 KOMMUTER 20” X 2.0”; SINGLE RUBBER COMPOUND; REFLECTIVE STRIP; WIRE BEAD; 60 PSI MAX; 20”X 2.0” INNER TUBE, SCHRADER VALVE. |
- Extras
| Component | Description |
|---|---|
| LIGHTS | FRONT: C7 LED HEADLIGHT WITH ADJUSTABLE MOUNT 60 LUX; REAR: LED BUILT INTO BATTERY WITH BRAKE LIGHT FUNCTION; POWERED BY MAIN BATTERY AND CONTROLLED BY LCD. |
| KICKSTAND | BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT. |
| TOOL KIT | CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH W/ #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH. |
| Fenders | LIGHTWEIGHT FENDER SET STANDARD; GLOSS BLACK PLASTIC FENDERS W/ STAINLESS STEEL HARDWARE |
- Weights
| Component | Description |
|---|---|
| BIKE (NO BATTERY) | ONE SIZE: 47.2 LB. |
| BATTERY | 52V/17.5AH: 10 LB; 52V/10.5AH: 8.8 LB. |
| WEIGHT LIMIT | 250 LBS (113 kg) |

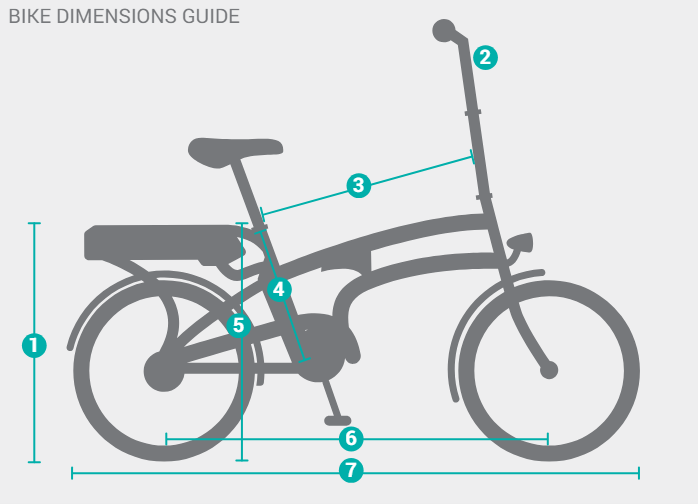

- Dimensions
| Pedego Latch | Measurements |
|---|---|
| 1. REAR HEIGHT | 21.5” (546mm) |
| 2. HANDLEBAR WIDTH | 23.5” (597mm) |
| 3. SEAT TUBE TO HEADSET | 22” (559mm) |
| 4. SEAT CLAMP TO CRANK | 14.5” (368mm) |
| 5. SEAT CLAMP TO GROUND | 24.75” (629mm) |
| 6. AXLE TO AXLE | 41.75” (1060mm) |
| 7. END TO END | 61.5” (1562mm) |
Click here to see the recommended rider height and size for each bike model.
*Specifications subject to change without notice.
